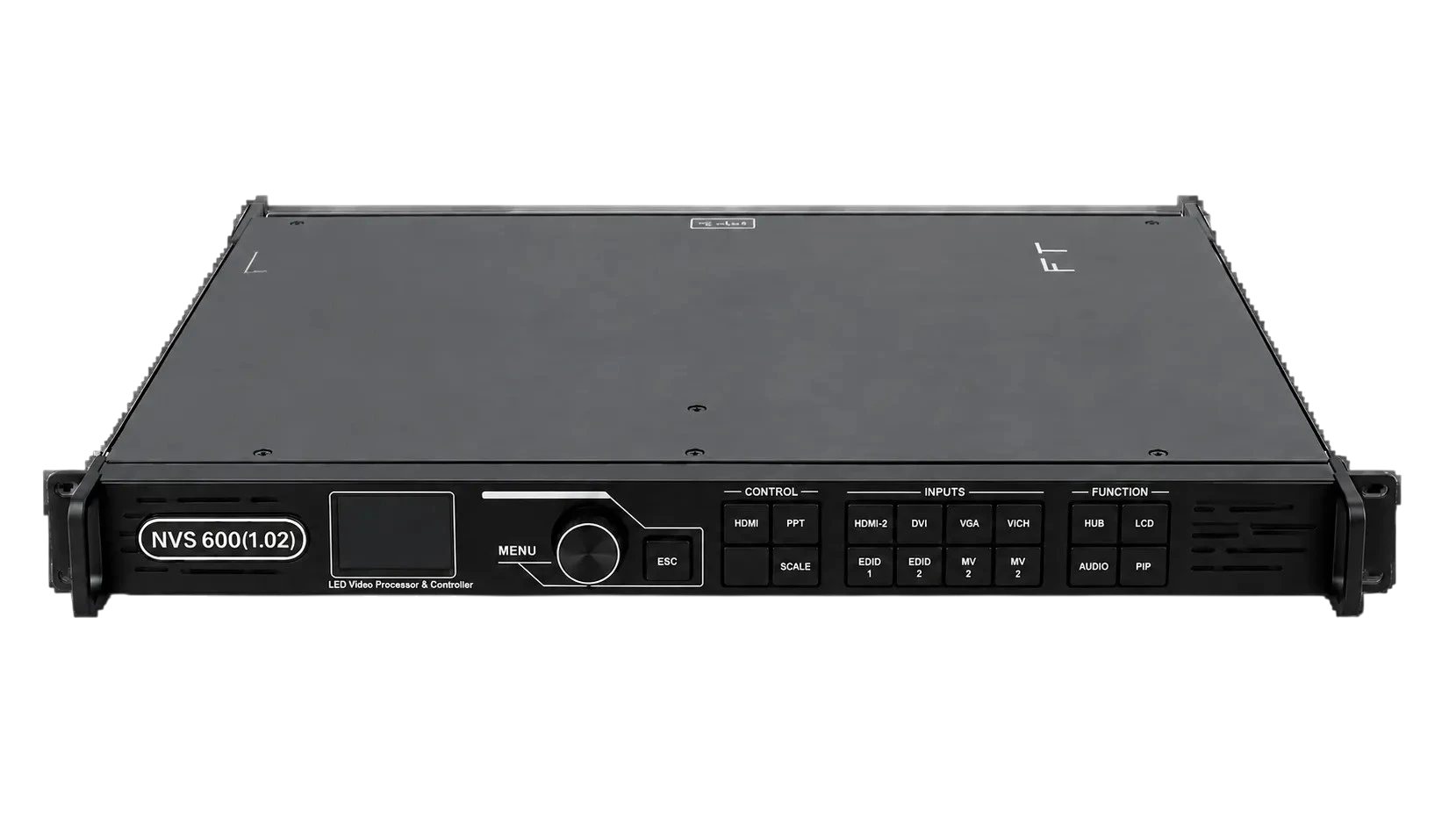

NVS 600 (1.02)
NVS 600 (1.02)
| • Brand Make: | NVS NEWTECH VIDEO SYSTEMS PVT LTD |
| • Model: | NVS 600 (1.02) |
| • Product Type: | All-in-One LED Video Processor & Controller |
| • Maximum Input Resolution: | Up to 4K × 2K @ 60 Hz |
| • Layout: | 1× 4K & 2×2K or 6×2K layers |
| • Led Loading Capacity: | Up to 3.9 million pixels |
| • Maximum Width: | Up to 10,240 pixels |
| • Maximum Height: | Up to 8,192 pixels |
| • Resolution Supported: | 3840 × 2160 or better |
| • Io Ports: | Built in |
| • Gigabit Ethernet Outputs: | 6 |
| • Optical Fiber: | 1 × 10G optical port |
| • Hdmi Monitor Input: | 1× HDMI 2.0, 2× HDMI 1.3 |
| • Sdi Port: | 1× 3G-SDI (IN & LOOP) |
| • Hdmi Monitor Output: | 1 × HDMI 1.3 |
| • Three D Interface: | 1 |
| • Control Port: | 2× Ethernet, 1× Light Sensor, 2× USB |
| • Audio: | 2 × Audio (1× Audio input, 1× Audio output) |
| • Usb: | USB interface for configuration / firmware-related functions |
| • Hdcp: | Yes |
| • Seamless Switching Scaling: | Yes — Seamless switching & scaling, fade in / fade out, PIP2 function support, content monitoring support |
| • Colour Brightness Grey Scale Adjustment: | Yes — Supports colour, brightness and grey scale adjustment |
| • Colour Sampling: | Yes — Supports 4:4:4, 4:2:2 (RGB/YCbCr) |
| • Hdr: | Yes |
| • Control: | Front panel |
| • Processing: | Multi-layer video processing |
| • Scaling: | Up-scaling / Down-scaling |
| • Low Latency: | Supported |
| • Working Modes: | Video Controller, Fiber Converter and Bypass |
| • Output Synchronization: | Supported |
| • Free Topology: | Supported with compatible receiving cards |
| • Calibration: | Brightness and chroma calibration supported |
| • Input Interfaces: | HDMI, 3G-SDI and other supported interfaces depending on configuration |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Rated Power Consumption: | 41 W |
| • Application: | 24 × 7 hr. |
| • Operating Temperature: | 0°C to 50°C |
Overview
- •The NVS 600 (1.02) is a professional all-in-one LED video processor and controller designed to combine video processing and LED display control in a single unit
- •It supports high-resolution video processing up to 4K × 2K at 60 Hz, making it suitable for professional LED video wall installations
- •Advanced multi-layer processing supports flexible layouts including 1×4K and 2×2K or up to 6×2K layers for complex content management
- •With six Gigabit Ethernet outputs and a 10G optical fiber interface, the NVS 600 (1.02) provides flexible signal distribution for large LED display systems
- •Designed for professional 24×7 operation with seamless switching, scaling, low-latency processing, HDR support and output synchronization
