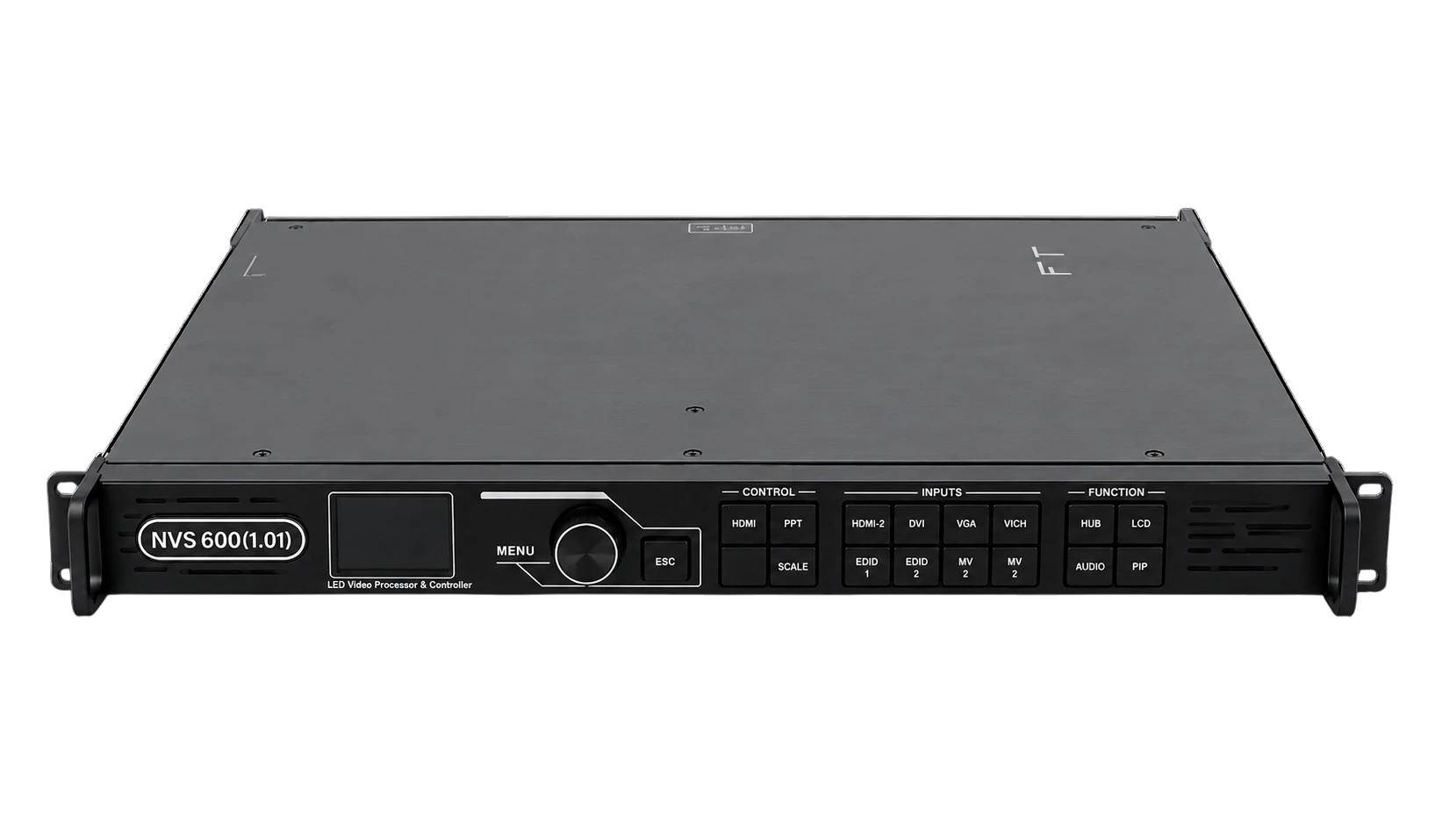

NVS 600(1.01)

• Brand Make:	NVS NEWTECH VIDEO SYSTEMS PVT LTD
• Model:	NVS 600(1.01)
• Product Type:	All-in-One LED Video Processor & Controller
• Maximum Input Resolution:	Up to 4K × 2K @ 60 Hz
• Layout:	1x 4K & 2x2K or 6x2K layers
• Led Loading Capacity:	Up to 3.9 million pixels
• Maximum Width:	Up to 10,240 pixels
• Maximum Height:	Up to 8,192 pixels
• Gigabit Ethernet Outputs:	6
• Optical Fiber:	1 × 10G optical port
• Hdmi Monitor Input:	1x HDMI 2.0, 2x HDMI 1.3
• Sdi Port:	1x 3G-SDI (IN & LOOP)
• Hdmi Monitor Output:	1 × HDMI 1.3
• Three D Interface:	1
• Control Port:	2x Ethernet, 1x Light Sensor, 2x USB
• Audio:	2 x Audio (1x Audio input, 1× Audio output)
• Usb:	USB interface for configuration / firmware-related functions
• Control:	Front panel
• Processing:	Multi-layer video processing
• Scaling:	Up-scaling / Down-scaling
• Low Latency:	Supported
• Working Modes:	Video Controller, Fiber Converter and ByPass
• Output Synchronization:	Supported
• Free Topology:	Supported with compatible receiving cards
• Calibration:	Brightness and chroma calibration supported
• Input Interfaces:	HDMI, 3G-SDI and other supported interfaces depending on configuration
• Power Supply:	100–240 VAC, 50/60 Hz
• Rated Power Consumption:	41 W
• Operating Temperature:	0°C to 50°C

Category: Accessories & Controllers

Overview

•The NVS 600(1.01) is a professional all-in-one LED video processor and controller designed to combine advanced video processing and LED display control in a single unit.
•It supports high-resolution video processing, multi-layer processing, advanced scaling and low-latency operation for professional LED video wall applications.
•With support for input resolutions up to 4K × 2K at 60 Hz, the NVS 600(1.01) is designed to deliver high-quality visual output for demanding professional display environments.
•The controller supports multiple signal interfaces including HDMI and 3G-SDI, along with Gigabit Ethernet outputs and a 10G optical fiber interface for flexible LED display connectivity.
•Its flexible working modes, output synchronization, calibration support and free topology compatibility make it suitable for professional and large-format LED display installations.
